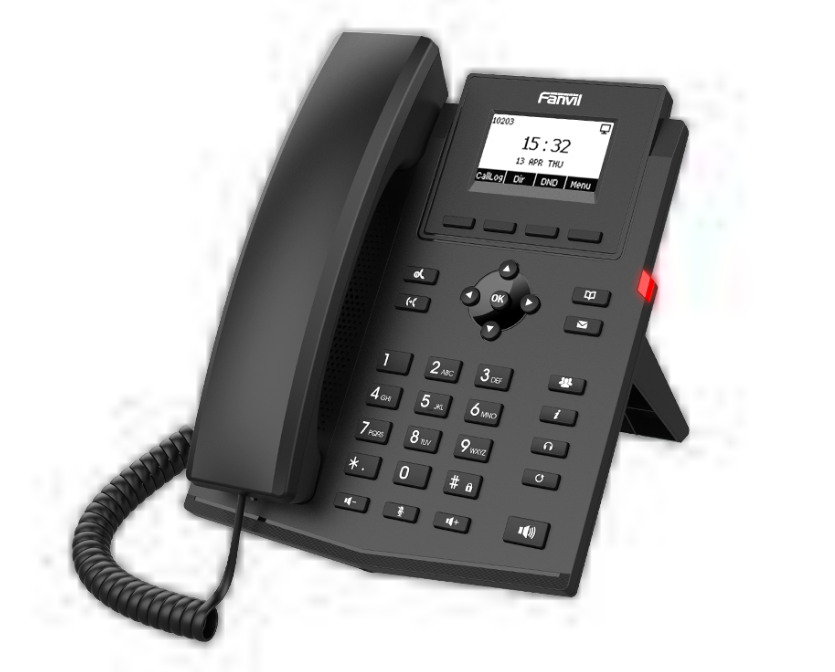

Fanvil X301P Entry Level IP Phone

Fanvil X301P Entry‑Level IP Phone:

• Display: 2.3″ dot‑matrix LCD (≈132×64 px) with backlight

• SIP Lines: Supports 2 SIP accounts

• Audio: HD voice; wideband G.722 & Opus codecs; full‑duplex speakerphone with echo & noise reduction

• Conferencing: Up to 6‑party local conferencing

• Network: Dual 10/100 Mbps Ethernet ports; X301P includes PoE support

• Headset: RJ9 port + EHS wireless headset compatibility (Plantronics/Jabra)

• Keys: 4 line keys (dual‑colour LEDs), 4 soft keys, navigation cluster, full dial pad, volume controls etc.

• Installation: Desktop stand (two tilt angles) + wall‑mountable bracket

• Security & Provisioning: SIP over TLS/SRTP, 802.1x, VPN (L2TP/OpenVPN), auto‑provision via FTP/TFTP/HTTP/HTTPS/TR‑069/DHCP 66/SIP PnP

• Phonebook & Logs: Local phonebook (1,000 entries), LDAP/XML remote directory, call logs (600 entries)

• Physical: Approx. 170×200×180 mm; PoE power uses <2 W; external adapter optional
