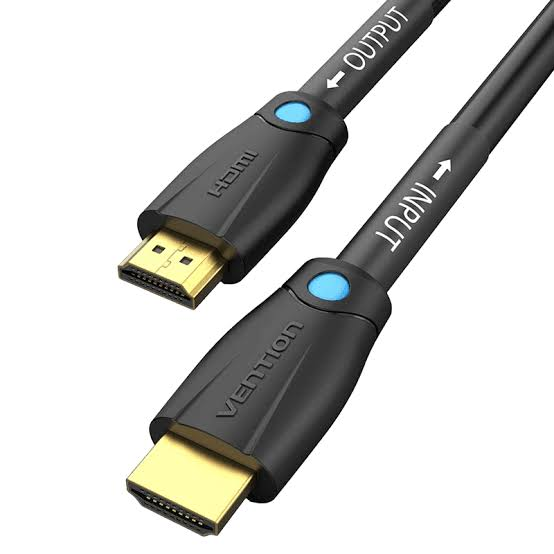

Vention HDMI Cable 30M Black for Engineering (AAMBT)
Vention HDMI Cable 30M Black for Engineering: Built for Structured Cabling, Not the Desk Drawer
The Vention HDMI Cable 30M Black for Engineering (AAMBT) is a 30-meter HDMI cable designed for structured cabling, meaning it goes into walls, ceilings, trunking and conduit during a building fit-out rather than sitting loose behind a TV. Instead of a slim consumer jacket, it uses a thick 9.0mm PVC outer jacket that, as a result, survives being pulled through trunking in a Westlands office block or a new classroom wing in Nakuru. Inside, pure copper conductors carry the signal, while aluminium foil plus metal mesh shielding blocks interference from nearby power lines and data cabling. At this length, the cable delivers 4K resolution at 30Hz and Full HD 1080p at 60Hz, which covers projectors, presentation screens and monitoring displays. Furthermore, it needs no external power at 30 meters, so you simply connect each end and the run is ready.
Key Features
In short, this cable stands out in five areas:
- 30-meter passive run with no external power supply required
- Pure copper conductors for stable signal transfer over long distances
- Aluminium foil + metal mesh shielding to cut interference in shared cable trays
- 9.0mm PVC jacket, which holds up during in-wall and conduit pulls
- 4K @ 30Hz and 1080p @ 60Hz, plus synchronized audio, 3D and Ethernet channel support
Technical Specifications
Specifically, the table below details every core specification of this cable:
| Specification | Details |
|---|---|
| Brand | Vention |
| Model | AAMBT |
| Product Type | HDMI Cable for Structure Cabling (Engineering series) |
| HDMI Version | HDMI 1.4* |
| Connector Type | HDMI Type A male to HDMI Type A male |
| Connector Plating | Gold-plated |
| Connector Head | One-colour PVC injection moulding |
| Conductor | Pure copper |
| Wire Gauge | 24AWG / 25AWG / 26AWG (varies by length)* |
| Shielding | Aluminium foil + metal mesh (braid) |
| Jacket Material | PVC |
| Outer Diameter | 9.0mm / 9.1mm* |
| Resolution at 30m | 4K (3840 x 2160) @ 30Hz |
| Full HD Support | 1920 x 1080 @ 60Hz |
| Additional Features | Synchronized audio and video, 3D, HDMI Ethernet channel |
| External Power | Not required (USB power applies to 45m and 50m versions only) |
| Cable Length | 30 meters |
| Colour | Black |
| Warranty | 1 year* |
Who This Cable Is Best Suited For
As a result of this combination of specs, three types of users benefit most:
- Schools, colleges and lecture halls, where a ceiling projector sits far from the lecturer’s desk and the cable must stay hidden in trunking for years
- Churches, conference venues and event halls, which need to link a sound booth or control desk at the back to a screen or projector at the front
- CCTV control rooms and security desks, where an NVR or monitoring PC feeds a large display across the room at a steady 1080p @ 60Hz
Pair It With the Right Source
Meanwhile, the cable is only one half of the setup. For a lecture hall or reception area, many institutions connect it to a compact desktop placed in a lockable cabinet. If you are planning that kind of build, browse our range of HP Desktops to find a source PC with an HDMI output that matches the run.
